Drupal 7 Webform with an item catalog table element

I was working on a Drupal 7 project and there was a requirement of a form with some simple text fields to put values and some elements in a grid like format to display catalog of items including item name, price, a text box for quantity and automatically calculated sub totals and grand total.

I started with webform module but the built in grid element did not work. Then I tried webform_table_element module, it had some bugs but I managed to configure it. But, unfortunately, it was not able to produce a similar form. I was on a tight deadline (as usual) and did not have time to do something custom, so I decided to try some workaround and after spending a little time I got acceptable result.

I am writing some simple steps to re-generate similar result. I know this is not an ideal solution but it can save a little time if you have to add a couple of similar forms in your Drupal based project.

You need to install webform and webform_table_element module modules first.

a) Add a field of type table_element in webform. table_element type requires you to put key|value pairs in 'Rows' textarea there, convert your 'value' to a simple JSON so it can be accessed later, something like:

1|{"ID":"001", "title":"My Item 1", "rate":"245"}
2|{"ID":"002", "title":"My Item 2", "rate":"460"}
3|{"ID":"003", "title":"My Item 3", "rate":"740"}

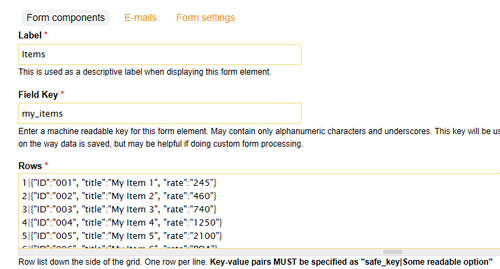

And here is a screenshot:

b) Add these child elements under newly created table_element type item:

  1.  Item Name
    1. Type: markup
    2. Label: Item Name
    3. Field Key: item_name
    4. Value: Name
  2. Item Rate
    1. Type: markup
    2. Label: Item Rate
    3. Field Key: item_rate
    4. Value: Rate
  3. Quantity
    1. Type: textfield
    2. Label: Quantity
    3. Field Key: quantity
  4. Item Rate
    1. Type: markup
    2. Label: Sub Total
    3. Field Key: sub_total
    4. Value: <div class="sub-total"></div>
      (you will need to disable rich text editor or write in source view with Text Format=Full HTML)

c) We are done with form building here, now time to add some code in template.php file:

// This will display form element in a multi column table

function adibf_table_element($variables) {
  $element = $variables['element'];
  $header = array();
  $header_complete = false;
  $rows = array();
  foreach (element_children($element) as $child) {
    $child_element = $element[$child];
 $rowCustomData = $child_element['#row_title'];
 $rowCustomData = json_decode($rowCustomData);
    $row = array($rowCustomData->ID);
    foreach (element_children($child_element) as $grandchild) {
      if (!$header_complete && isset($element['#row_titles'])) {
       if($child_element[$grandchild]['#type'] == 'markup') {
   $theKey = trim(strip_tags($child_element[$grandchild]['#markup']));
   $theTitle = '';
   switch($theKey) {
    case 'Name':
     $theTitle = t('Item');
    case 'Rate':
     $theTitle = t('Rate (usd)');
    case 'Quantity':
     $theTitle = t('Quantity');
   if($element['#column_titles'][$grandchild] == 'sub-total')
    $theTitle = t('Sub Total');
   $header[]  = array('data' => $theTitle, 'class' => $element['#column_titles'][$grandchild]);
  } else {
         $header[]  = array('data' => t($element['#row_titles'][$grandchild]), 'class' => $element['#column_titles'][$grandchild]);
  if($child_element[$grandchild]['#type'] == 'markup') {
   if(trim(strip_tags($child_element[$grandchild]['#markup'])) == 'Name')
    $child_element[$grandchild]['#markup'] = $rowCustomData->title;
   if(trim(strip_tags($child_element[$grandchild]['#markup'])) == 'Rate')
   $child_element[$grandchild]['#markup'] = $rowCustomData->rate;
   if(trim(strip_tags($child_element[$grandchild]['#markup'])) == 'Color')
   $child_element[$grandchild]['#markup'] = $rowCustomData->color;
   if(trim(strip_tags($child_element[$grandchild]['#markup'])) == 'Dimension')
   $child_element[$grandchild]['#markup'] = $rowCustomData->dimension;
     $row[] = array('data' => drupal_render($child_element[$grandchild]));

    $header_complete = true;
    $rows[] = $row;

  array_unshift($header, array('class' => 'row-title', 'data' => t('Code')));
  return theme('table', array('header' => $header, 'rows' => $rows));

// This will show posted results in multi column table

function adibf_webform_submission_render_alter(&$renderable) {
 if (isset($renderable['#submission'])) {
  foreach (element_children($renderable) as $key) {
   $tableRows = array();
   if ($renderable[$key]['#webform_component']['type'] == 'table_element') {
    $cid = $renderable[$key]['#webform_component']['cid'];
    foreach($renderable['#submission']->data[$cid]['value']['rows'] as $row) {
     $data = strip_tags($row[0]);
     $quantity = $row['quantity'];
     $objData = json_decode($data);
     $subTotal = $objData->rate * $quantity;
     $tableRows[] = array($objData->ID, $objData->title, $objData->rate, $quantity, $subTotal);
    $tableHeader = array('ID', 'Title', 'Rate', 'Quantity', 'Sub Total');
    $theTable = array(
     'header' => $tableHeader,
     'rows' => $tableRows,
    $renderable[$key]['#markup'] = theme('table', $theTable);

First code block will display form element visually in a multi column table with one text field for quantity in each row, the second block is for the posted results.

d) The last step is to add a little jQuery somewhere in the theme so after entering quantity, sub total column value would be changed. You can also add a feature to show Net Total somewhere on the page:

jQuery('.webform-component-table_element .form-text').change(function() {
  var elems = jQuery('.webform-component-table_element .form-text');
  var totalAmount = 0;
  for(var i=0; i<elems.length; i++) {
   totalAmount += table_element_calculate(elems[i]);

function table_element_calculate(elem) {
 var sPrice = jQuery(elem).parents('td').prev().text();
 var hTotal = jQuery(elem).parents('td').next();
 var p = 0;
 try {
  p = sPrice * jQuery(elem).val();
   p = 0;
  if(p > 0)
  // alert(p);
 } catch(e) {}
 return p;

Note: I just copied pasted these codes from a project that I did some months ago, so if something don't work please post in comments. Thanks.
